MC4N-ECAT Mini Master

P900 (2 Axis) | P901 (4 Axis) | P902 (8 Axis) | P903 (16 Axis) | P904 (32 Axis)

The MC4N is a high performance Motion Coordinator which is dedicated to running remote servo and stepper drives via the EtherCAT real time automation bus. It is based on an up-rated version of the 532MHz ARM 11 processor which makes it ideal for high axis count machines or robotic applications.
EtherCAT logo



  • Up to 32 EtherCAT Digital Drive Axes
  • Supports Position, Speed and Torque Drive Modes
  • Up to 1024 EtherCAT I/O
  • EtherCAT CoE protocol to CiA402
  • Linear, Circular, Helical and Spherical Interpolation
  • Flexible CAM shapes, Linked Motion
  • Isolated Encoder Port
  • Biss, EnDAT and SSI Absolute Encoder Supported
  • Hardware Linked Output for Camera / Laser Control
  • Ethernet-IP / Modbus TCP / Trio ActiveX / Uniplay HMI / UDP / Ethernet Interface Built-In
  • Precise 64Bit Motion Calculations with 532MHz ARM 11 Processor
  • IEC 61131-3 Programming
  • Multi-tasking BASIC Programming
  • Text File Handling
  • Robotic Transformations
  • 4 high speed registration inputs
  • Isolated RS232 and RS485 ports
  • SD Memory Card Slot
  • EtherCAT I/O Expansion
  • CANopen I/O Expansion

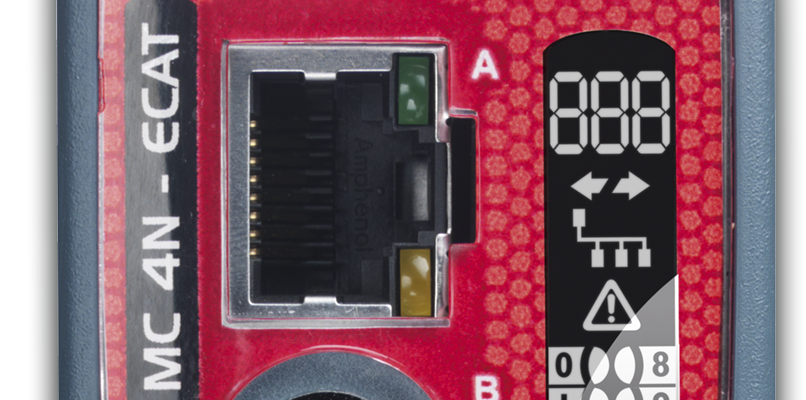

  • Backlit LCD Display
  • RoHS and CE Approved

Plug and Play

The MC4N supports up to 32 axes of motion with 64 bit integer position registers for ultra precise axis resolution. EtherCAT slave drives and I/O can be connected and run in cyclic synchronous position, speed or torque modes provided these are supported by the drive.




The P900 has 2 built-in EtherCAT axes which can be user upgraded with the purchase of P912 Remote Axis FECs.
Each P912 doubles the available axes, i.e:
P900 + 1 x P912 = 4 Remote Axes
P900 + 2 x P912 = 8 Remote Axes
P900 + 3 x P912 = 16 Remote Axes
P900 + 4 x P912 = 32 Remote Axes

Of course, the MC4N can be purchaced with axes factory loaded ie:
P900 = 2 Axes
P901 = 4 Axes
P902 = 8 Axes
P903 = 16 Axes
P904 = 32 Axes

Every axis can be programmed to move using linear, circular or helical or spherical interpolation, electronic cams, linked axes and gearboxes. The power of the controller allows for multiple robotic transformations to run simultaneously.

Easy to use


A bright easy to read backlit display enables the controller status to be easily determined, whilst the single piece metal cast backplate provides an integrated earth chassis to improve noise rejection in the industrial environment.

Familiar Tools

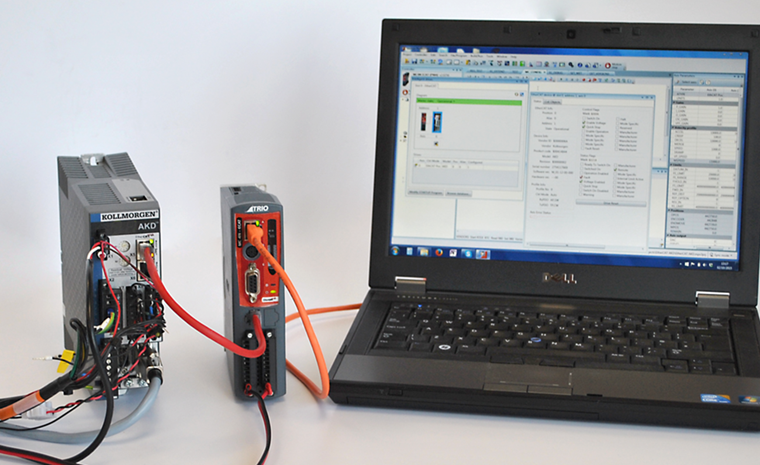

The built-in Ethernet port allows programming and connection of common PLC and HMI protocols, including the Trio Uniplay range of HMIs, directly to the MC4N. User programs can be written in Trio’s established multi-tasking TrioBASIC language using the powerful Motion Perfect v4 application development software making complex motion easy. The industry standard IEC 61131-3 languages are available as an option, allowing a fully functional PLC programming system.

Product P900
Description 32 axis panel mounted motion coordinator for EtherCAT
PCode P900
Status Supported
Configuration P900
Axis 0 Extended
Axis 1
Axis 2
Axis 3
Axis 4
Axis 5
Axis 6
Axis 7
Axes P900
Max axes 32
Max networked axes 32
Max virtual axes 32
Max discrete wired axes 1
Performance P900
Cores 1
Processor ARM11
Clock frequency 532 MHz
Maths precision IEEE 457 Double
Position register precision 64 bit
Execution benchmark 51 lines/ms
Real-time clock Yes
Flash memory 32 x 16000 values
User memory 8 MB
Table memory 512000 values
Min expected flash memory life (normal use) 42 years
Maximum VR variables 4096
Maximum servo period 2000 µs
Minimum servo period 125 µs
Maximum encoder input frequency 6.000 MHz
Maximum stepper output frequency 2.000 MHz
Drive interfaces P900
Auxilliary axis No
EtherCAT Yes
Hydraulic No
Piezo No
Panasonic RTEX No
Servo No
Step & direction Axis0
Communications P900
Anybus No
Bluetooth No
CANopen Yes
CC-Link No
DeviceNet Yes
Ethernet Yes
EthernetIP Yes
Hostlink Yes
Profibus No
ProfiNet No
RS232/RS485 Yes
USB 1.1 No
Encoder ports P900
Feedback input No
Incremental (A+B) output Yes
Pulse & direction output Yes
Reference input Yes
SSI Absolute Input Yes
EnDat Absolute Input Yes
Tamagawa Absolute Input Yes
BiSS Absolute Input Yes
Internal I/O P900
+/-10V analogue outputs 0
Analogue output precision 12 bits
Analogue Inputs (0-10V) 0
Analog input precision 12 bits
Digital Bidirectional I/O (24V) 8
Digital Inputs (24Vdc) 8
Digital outputs (24Vdc) 0
Registration inputs 4
Registration speed 1 µs
Watchdogs 1
Watchdog rating 29V, 100mA max
External I/O P900
+/-10V analogue outputs 16
Analogue output precision 12 bits
+/-10V analogue inputs 32
Analogue input precision 12 bits
Digital I/O points 1024
Programming P900
Trio BASIC Yes
DXF in Yes
G-Code Yes
IEC61131 Yes
Kinematic Option
Maximum programs 64
Maximum tasks 22
Software P900
Motion Perfect version 4
Expansion P900
Expansion module type None
Maximum modules 0
Memory card SD

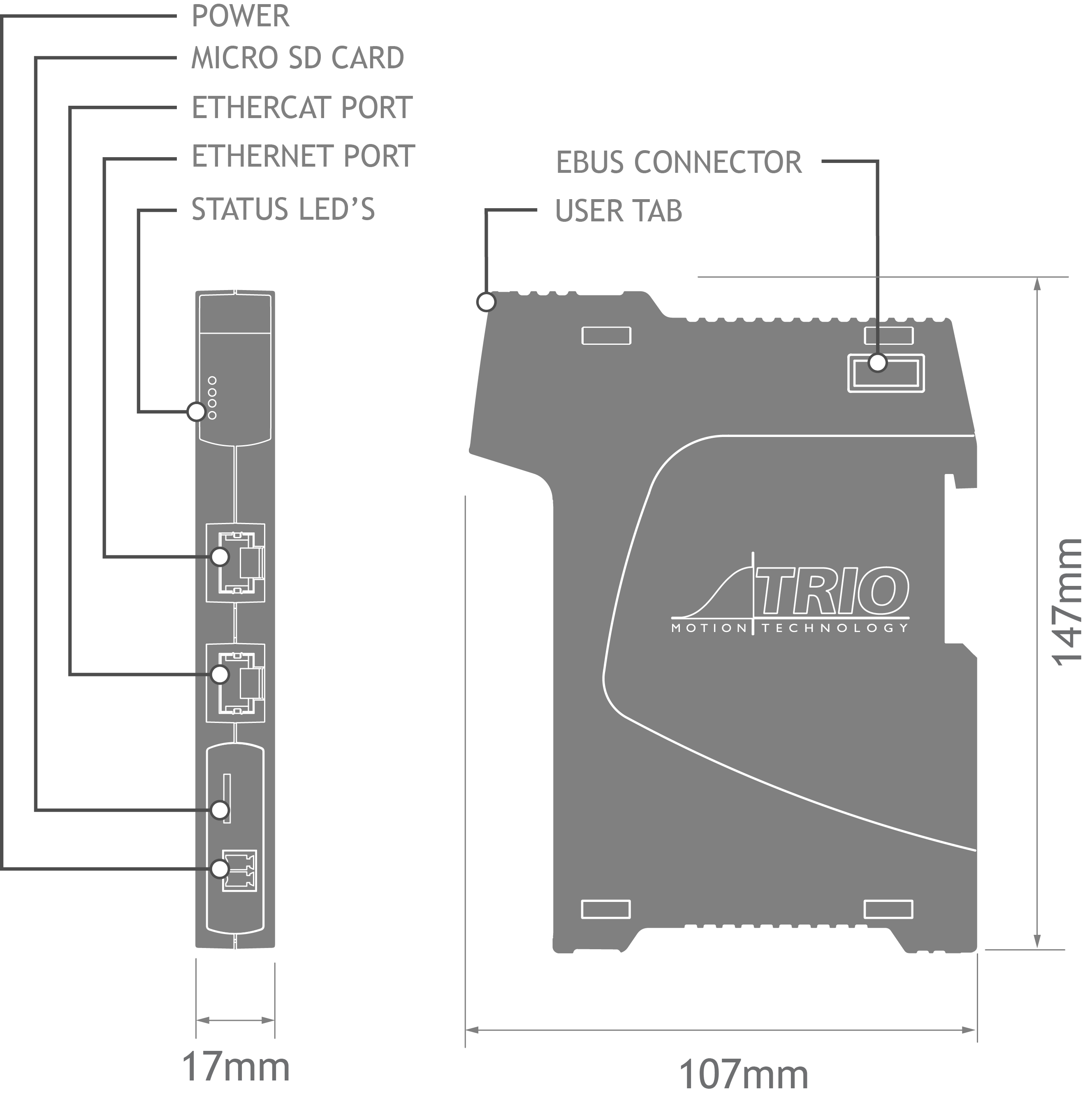

Physical P900
Maximum operating temperature 45 °C
Minimum operating temperature 0 °C
Mount Panel
Depth 120.0 mm
Height 157.0 mm
Width 40.0 mm
Weight 432 g
Power P900
Supply current 350 mA
Supply tolerance +/- 20%
Supply voltage 24 V
Certification P900
CE Yes
RoSH Yes
UL Yes

Axis Configuration Key

Core functionality

CORE AXES – can be configured in software as pulse and direction outputs with stepper or servo drives. They can also be configured for incremental encoder feedback.

Core functionality is a set of ATYPEs (Axis TYPEs) that are available on all controllers. They are based on pulse outputs and incremental encoder feedback.

ATYPE Description
43 Pulse and direction output with enable output
45 Quadrature encoder output with enable output
63 Pulse and direction output with Z input
64 Quadrature encoder output with Z input
76 Incremental encoder with Z input
78 Pulse and direction with VFF_GAIN and enable output 1
Extended functionality

EXTENDED AXES – in addition to the Core functionality these axes can also be configured for absolute encoders and closed loop servos (requires voltage output).

Only axes marked as AS have an analogue output and can be used for closed loop control.
All Extended Axes can use these ATYPE's as feedback.
If you want to just use the feedback and not complete a closed loop servo system set SERVO = OFF

ATYPE Description
30 Analogue feedback Servo
44 Incremental encoder Servo with Z input
46 Tamagawa absolute Servo
47 Endat absolute Servo
48 SSI absolute Servo
60 Pulse and direction feedback Servo with Z input
77 Incremental encoder Servo with enable output
92 Biss absolute servo
EtherCAT logo  Specification
Speed 100Mbps
Physical Layer 100BASE-TX full duplex (IEEE 802.3)
Cable Shielded Twisted Pair (TIA/EIA-568B CAT5e)
Topology Line, tree or star (1)
Isolation Pulse transformer with common-mode choke
Connector RJ45
Cable Length 100m max between nodes
Cyclic period 125µsec (Flex-X Nano, Flex-6 Nano, MC6N)
250µsec (MC664-X)
500µsec, 1000µsec, 2000µsec or 4000µsec (MC664, Flex-6 Nano, Flex-X Nano, MC6N)
Synchronisation Distributed Clocks technology.  Jitter < 1 µsec
Protocol CoE, SoE (2)
Number of Axes 32 (MC4N)
64 (MC464+P876)
128 (MC664-X)
64 (PC-MCAT-64, PC-MCAT-2)
64 (Flex-X Nano, Flex-6 Nano, MC6N)
Number of Nodes 128 slave nodes maximum
Motion modes Cyclic Synchronous Position, Cyclic Synchronous Velocity, Cyclic Synchronous Torque
Parameter transfer CoE Object read/write.  SoE IDN read/write
Input/Output Up to 1024 input bits and 1024 output bits
(1) Tree and star require the use of EtherCAT switches.
(2) CanOpen application protocol over EtherCAT. (CoE)
Servo drive profile according to IEC 61491 over EtherCAT. (SoE)
