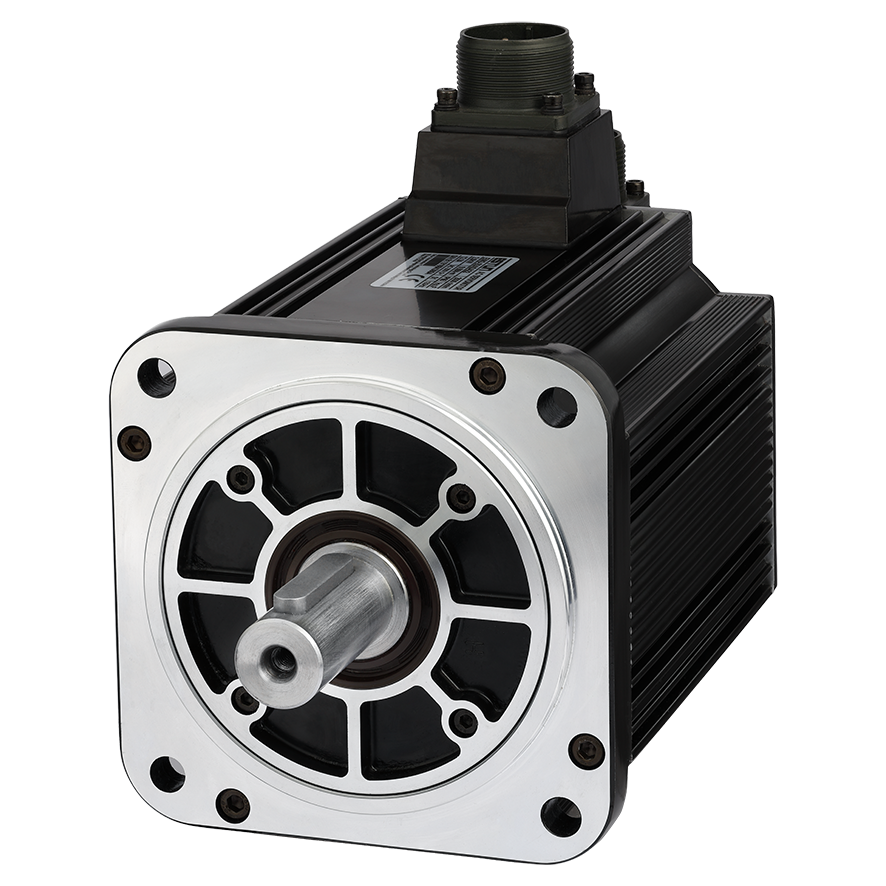

MXM Servo Motor Range
The MXM range of Medium Inertia Medium Speed Servo Motors for the DX Servo Drives 850W - 7.5kW range.
The MXM family of servo motors include solutions with absolute or incremental encoders, are suitable for application speeds up to 3000rpm, include variants with an integrated brake.
Medium inertia allows fast response times and these motors develop a very high torque despite their small size. In combination with our servo drives, they are ideal for applications with high dynamic responses and fast and precise positioning.
Our servo drive systems can be used in a wide range of applications thanks to their high performance, available power range and compact dimensions.
Highlights
- 17-bit incremental or 23-bit absolute encoder option
- IP65 rated
- Oil seal as standard
- Optional brake
Compatibility
| MXM 200V | DX3 | DX4 | DX5 |
|---|---|---|---|
| 850W | Yes | Yes | |
| 1.3kW | Yes | Yes | |
| 1.8kW | Yes | Yes |
| MXM 400V | DX3 | DX4 | DX5 |
|---|---|---|---|
| 850W | Yes | ||
| 1.3kW | Yes | ||
| 1.8kW | Yes | ||
| 2.9kW | Yes | ||
| 4.4kW | Yes | ||
| 5.5kW | Yes | ||
| 7.5kW | Yes |

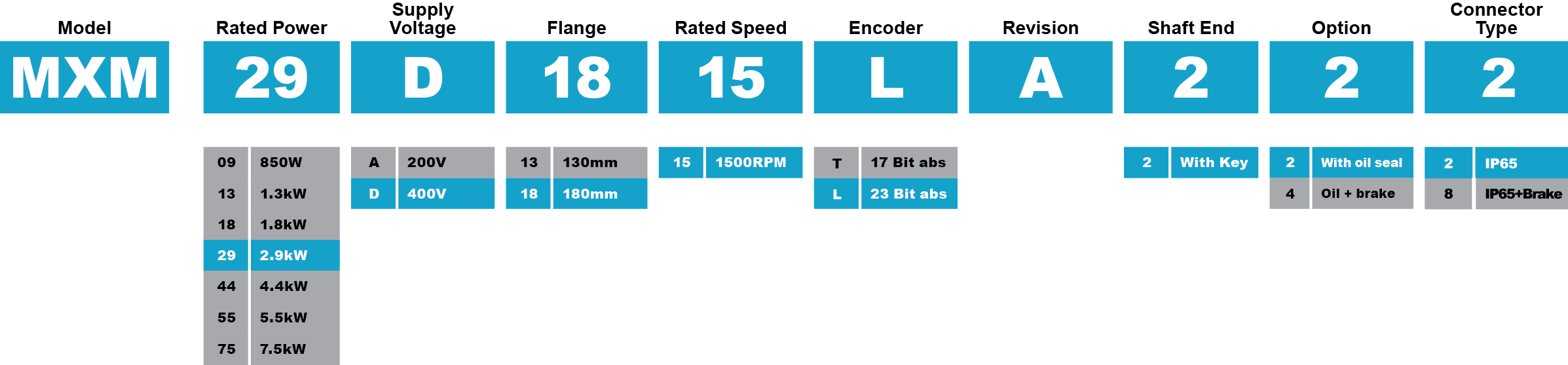

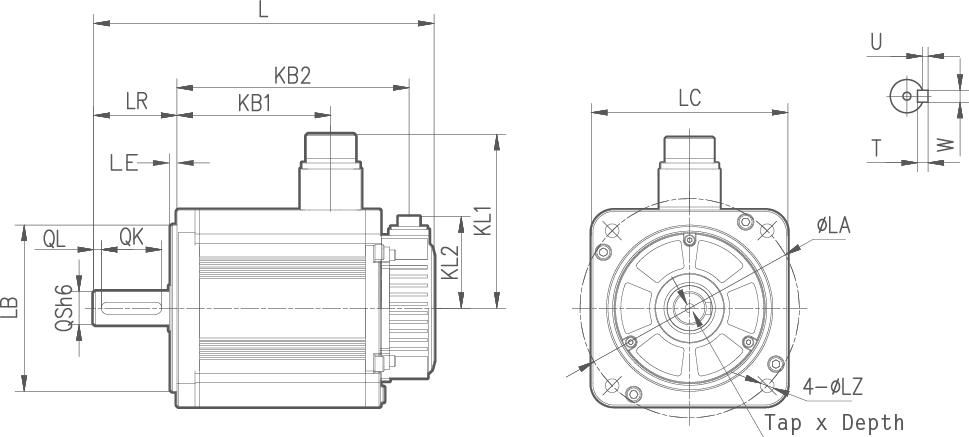

| Power | Model (MXM-) | L | LL | Flange Side | S | P | Key | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LR | LE | LF | LC | LA | LB | LZ | QK | W | T | U | ||||||
| 850W | 09A/09D | 185 (215) | 131 (161) | 55 | 6 | 12 | 130 | 145 | 110 | 9 | 22 | M6x 20 | 32 | 8 | 7 | 4 |
| 1.3kW | 13A/13D | 200 (230) | 146 (176) | 55 | 6 | 12 | 130 | 145 | 110 | 9 | 22 | M6x 20 | 32 | 8 | 7 | 4 |
| 1.8kW | 18A/18D | 215 (245) | 161 (191) | 55 | 6 | 12 | 130 | 145 | 110 | 9 | 22 | M6x 20 | 32 | 8 | 7 | 4 |
| 2.9kW | 29D | 239 (284) | 160 (205) | 79 | 3.2 | 18 | 180 | 200 | 114.3 | 13.5 | 35 | M8 x 16 | 65 | 10 | 8 | 3 |
| 4.4kW | 44D | 258 (303) | 179 (224) | 79 | 3.2 | 18 | 180 | 200 | 114.3 | 13.5 | 35 | M8 x 16 | 65 | 10 | 8 | 3 |
| 5.5kW | 55D | 324 (377) | 221 (264) | 113 | 3.2 | 18 | 180 | 200 | 114.3 | 13.5 | 42 | M8 x 16 | 96 | 12 | 10 | 3 |
| 7.5kW | 75D | 360 (413) | 247 (300) | 113 | 3.2 | 18 | 180 | 200 | 114.3 | 13.5 | 42 | M8 x 16 | 96 | 12 | 10 | 3 |

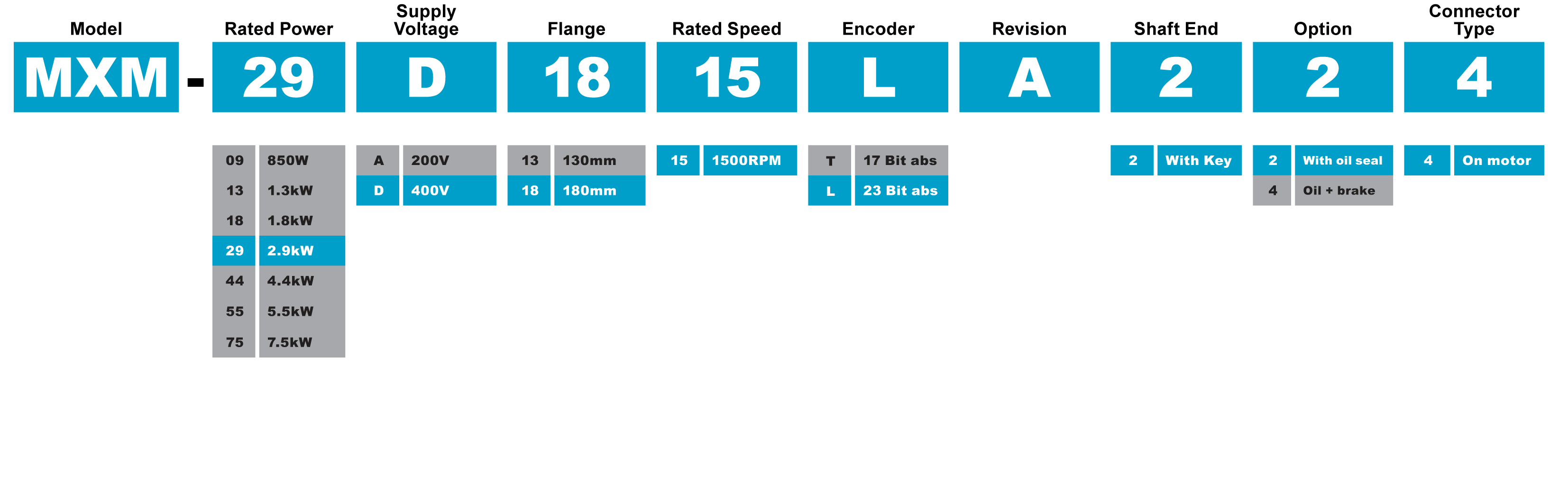

Download the Trio Drive, Motor and cable Selection table to allow easy selection of drive, motor, cables and connectors.
Use the drop-down menus to narrow down the selection.
Trio Drive and Motor Selection Table protected.zip
The download is a password protected .zip file. To un-zip, use the password âTrio2023â.

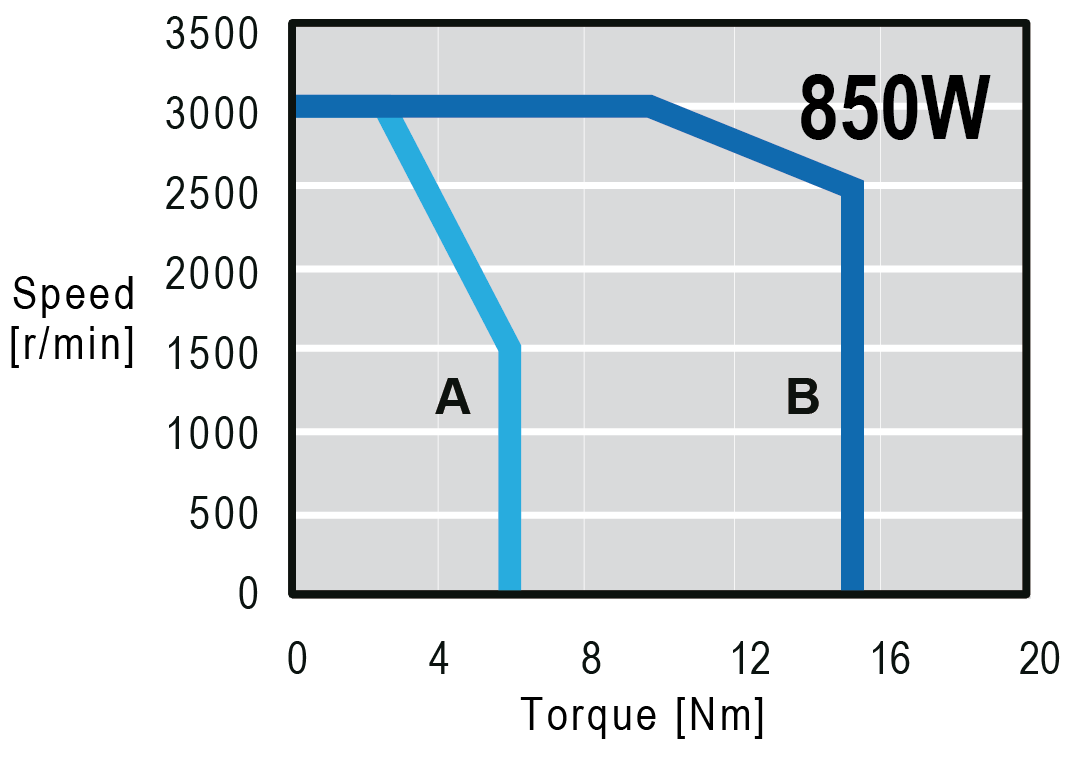

850W Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-09A1315LA224 | M0767 | DX3-110AEA | D3005 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-09A1315LA244 | M0768 | DX3-110AEA | D3005 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-09A1315TA224 | M0790 | DX3-110AEA | D3005 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-09A1315TA244 | M0791 | DX3-110AEA | D3005 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-09D1315LA224 | M0792 | DX3-110DEA | D3010 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-09D1315LA244 | M0793 | DX3-110DEA | D3010 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-09D1315TA224 | M0794 | DX3-110DEA | D3010 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-09D1315TA244 | M0795 | DX3-110DEA | D3010 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-09A1315LA224 | M0767 | DX4-110AJA | D0103 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-09A1315LA244 | M0768 | DX4-110AJA | D0103 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-09A1315LA224 | M0767 | DX3-110AMA | D3025 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-09A1315LA244 | M0768 | DX3-110AMA | D3025 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-09A1315TA224 | M0790 | DX3-110AMA | D3025 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-09A1315TA244 | M0791 | DX3-110AMA | D3025 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-09D1315LA224 | M0792 | DX3-110DMA | D3030 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-09D1315LA244 | M0793 | DX3-110DMA | D3030 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-09D1315TA224 | M0794 | DX3-110DMA | D3030 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-09D1315TA244 | M0795 | DX3-110DMA | D3030 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |

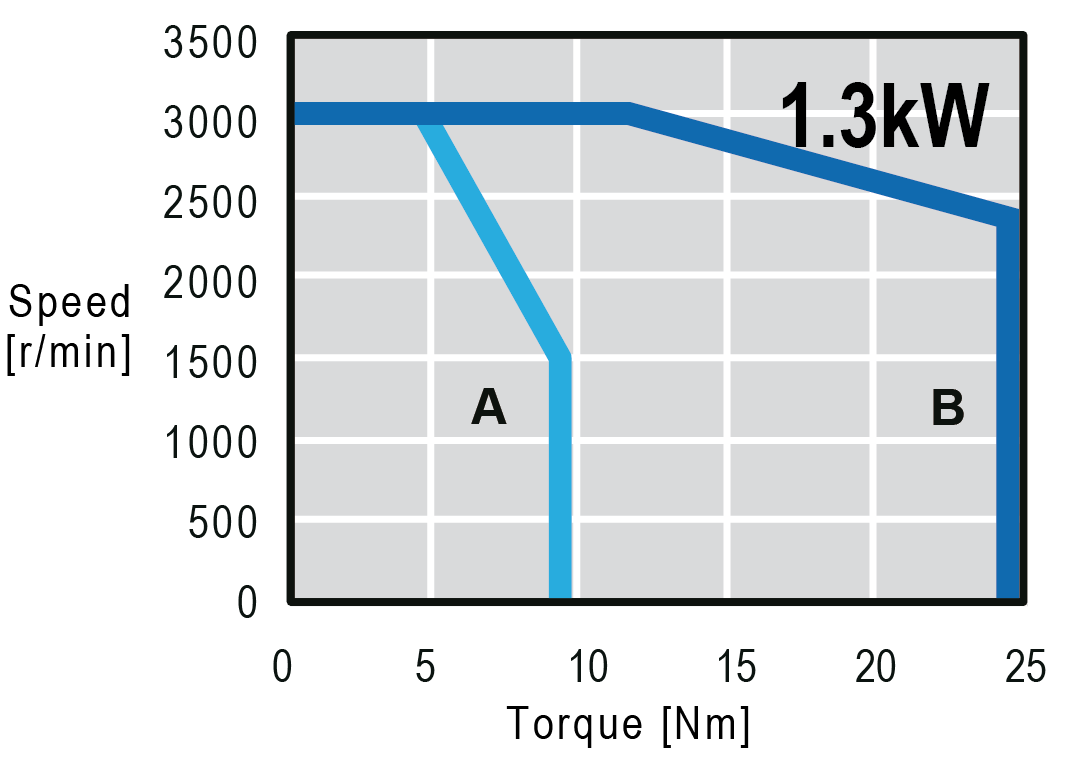

1.3kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-13A1315LA224 | M0769 | DX3-115AEA | D3006 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-13A1315LA244 | M0770 | DX3-115AEA | D3006 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-13A1315TA224 | M0796 | DX3-115AEA | D3006 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-13A1315TA244 | M0797 | DX3-115AEA | D3006 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-13D1315LA224 | M0798 | DX3-115DEA | D3011 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-13D1315LA244 | M0799 | DX3-115DEA | D3011 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-13D1315TA224 | M0803 | DX3-115DEA | D3011 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-13D1315TA244 | M0804 | DX3-115DEA | D3011 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-13A1315LA224 | M0769 | DX4-115AJA | D0102 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-13A1315LA244 | M0770 | DX4-115AJA | D0102 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-13A1315LA224 | M0769 | DX3-115AMA | D3026 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-13A1315LA244 | M0770 | DX3-115AMA | D3026 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-13A1315TA224 | M0796 | DX3-115AMA | D3026 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-13A1315TA244 | M0797 | DX3-115AMA | D3026 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-13D1315LA224 | M0798 | DX3-115DMA | D3031 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-13D1315LA244 | M0799 | DX3-115DMA | D3031 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-13D1315TA224 | M0803 | DX3-115DMA | D3031 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-13D1315TA244 | M0804 | DX3-115DMA | D3031 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |

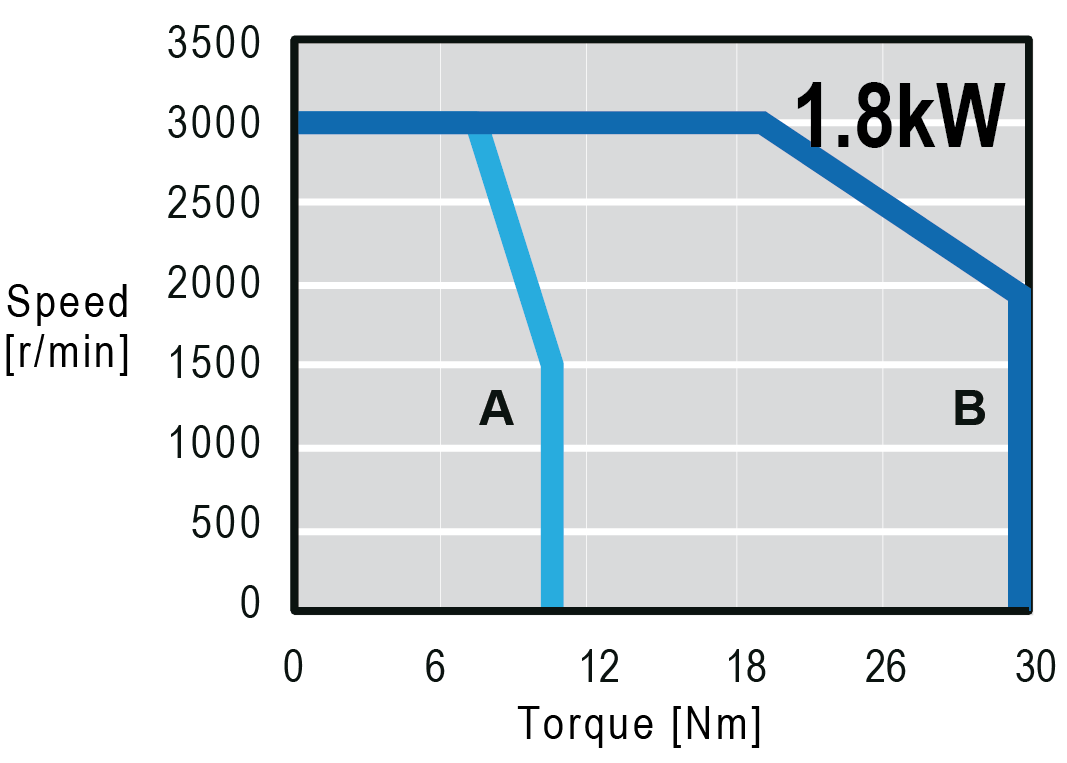

1.8kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-18D1315LA224 | M0805 | DX3-120DEA | D3012 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-18D1315LA244 | M0806 | DX3-120DEA | D3012 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-18D1315TA224 | M0807 | DX3-120DEA | D3012 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-26J | X0800 |
| MXM-18D1315TA244 | M0808 | DX3-120DEA | D3012 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-26J | X0800 |
| MXM-18D1315LA224 | M0805 | DX3-120DMA | D3032 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-18D1315LA244 | M0806 | DX3-120DMA | D3032 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |
| MXM-18D1315TA224 | M0807 | DX3-120DMA | D3032 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9314-05 | X0511 | SM-50J | X0813 |
| MXM-18D1315TA244 | M0808 | DX3-120DMA | D3032 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9314-05 | X0516 | SM-50J | X0813 |

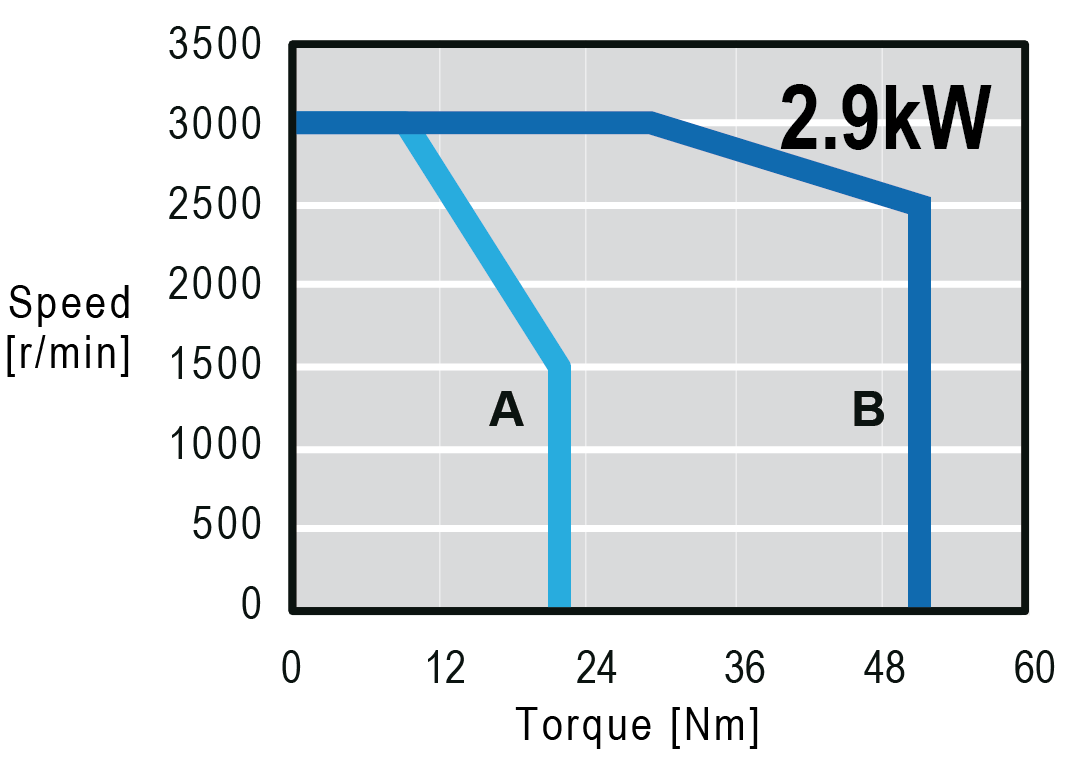

2.9kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-29D1815LA224 | M0809 | DX3-130DEA | D3013 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N8214-05 | X0551 | SM-26J | X0800 |
| MXM-29D1815LA244 | M0810 | DX3-130DEA | D3013 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B8214-05 | X0556 | SM-26J | X0800 |
| MXM-29D1815LA224 | M0809 | DX3-130DMA | D3033 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N8214-05 | X0551 | SM-50J | X0813 |
| MXM-29D1815LA244 | M0810 | DX3-130DMA | D3033 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B8214-05 | X0556 | SM-50J | X0813 |

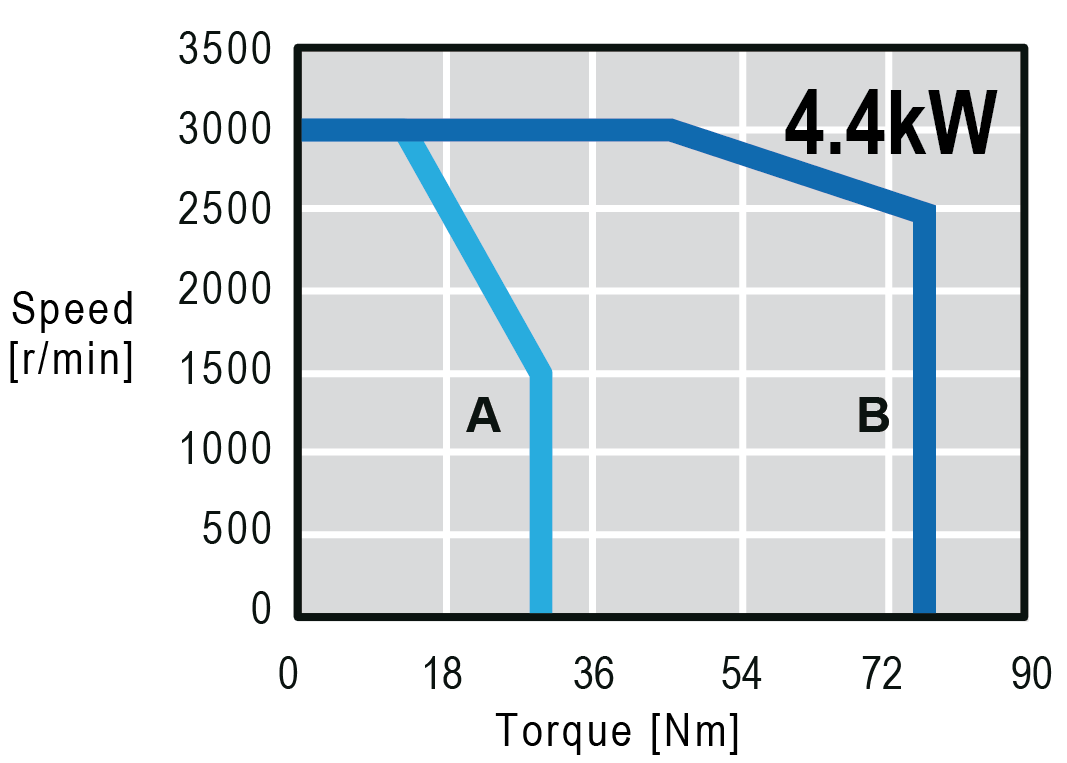

4.4kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-44D1815LA224 | M0811 | DX3-150DEA | D3014 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9212-05 | X0561 | SM-26J | X0800 |
| MXM-44D1815LA244 | M0812 | DX3-150DEA | D3014 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9212-05 | X0566 | SM-26J | X0800 |
| MXM-44D1815LA224 | M0811 | DX3-150DMA | D3034 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9212-05 | X0561 | SM-50J | X0813 |
| MXM-44D1815LA244 | M0812 | DX3-150DMA | D3034 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9212-05 | X0566 | SM-50J | X0813 |
5.5kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-55D1815LA224 | M0813 | DX3-175DEA | D3015 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9212-05 | X0561 | SM-26J | X0800 |
| MXM-55D1815LA244 | M0814 | DX3-175DEA | D3015 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9212-05 | X0566 | SM-26J | X0800 |
| MXM-55D1815LA224 | M0813 | DX3-175DMA | D3035 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9212-05 | X0561 | SM-50J | X0813 |
| MXM-55D1815LA244 | M0814 | DX3-175DMA | D3035 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9212-05 | X0566 | SM-50J | X0813 |

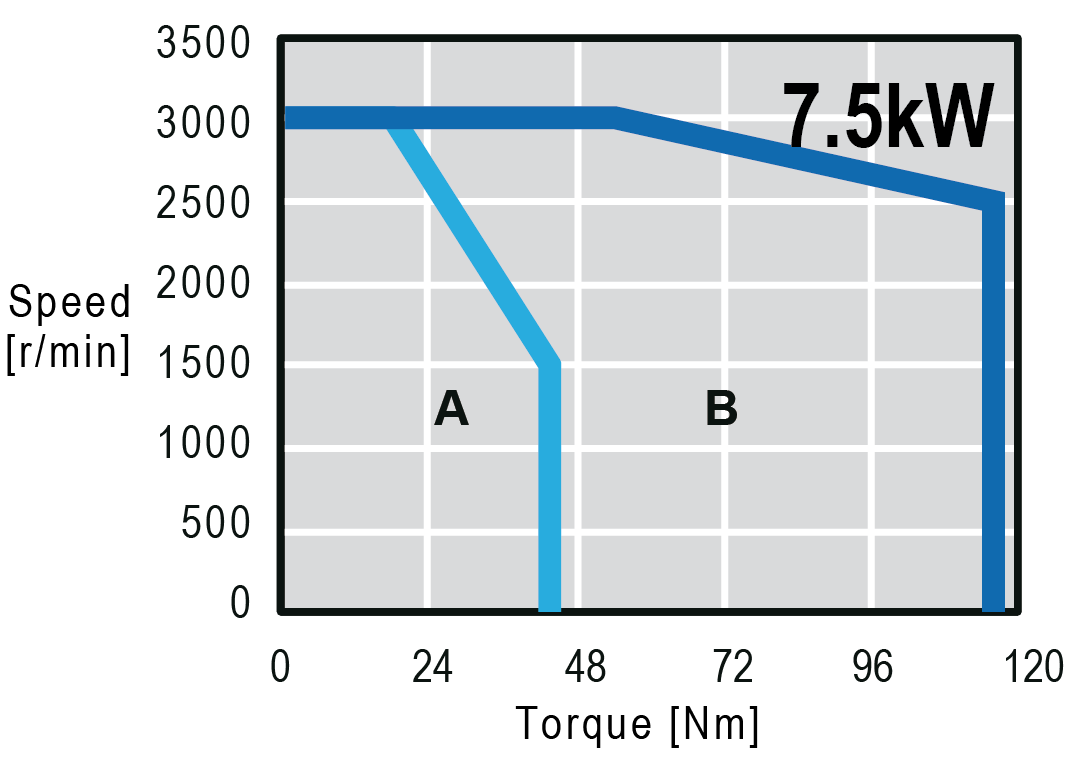

7.5kW Motor
| Motor Model | Trio Mrt # | Drive Model | Trio Drv # | Enc Cable (with batt) | Trio Enc Cbl # | Enc Cable (no batt) | Trio Enc Cbl part (no battery) | Power Cable | Trio Pwr Cbl # | I/O Plug | Trio I/O Plug # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MXM-75D1815LA224 | M0815 | DX3-175DEA | D3015 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9211-05 | X0571 | SM-26J | X0800 |
| MXM-75D1815LA244 | M0816 | DX3-175DEA | D3015 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9211-05 | X0571 | SM-26J | X0800 |
| MXM-75D1815LA224 | M0815 | DX3-175DMA | D3035 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-N9211-05 | X0571 | SM-50J | X0813 |
| MXM-75D1815LA244 | M0816 | DX3-175DMA | D3035 | EC3S-A1924-05 | X0441 | EC3S-I1924-05 | X0436 | EC3P-B9211-05 | X0571 | SM-50J | X0813 |
| Cables for MXM Motor Range 1kW - 2kW | |
|---|---|

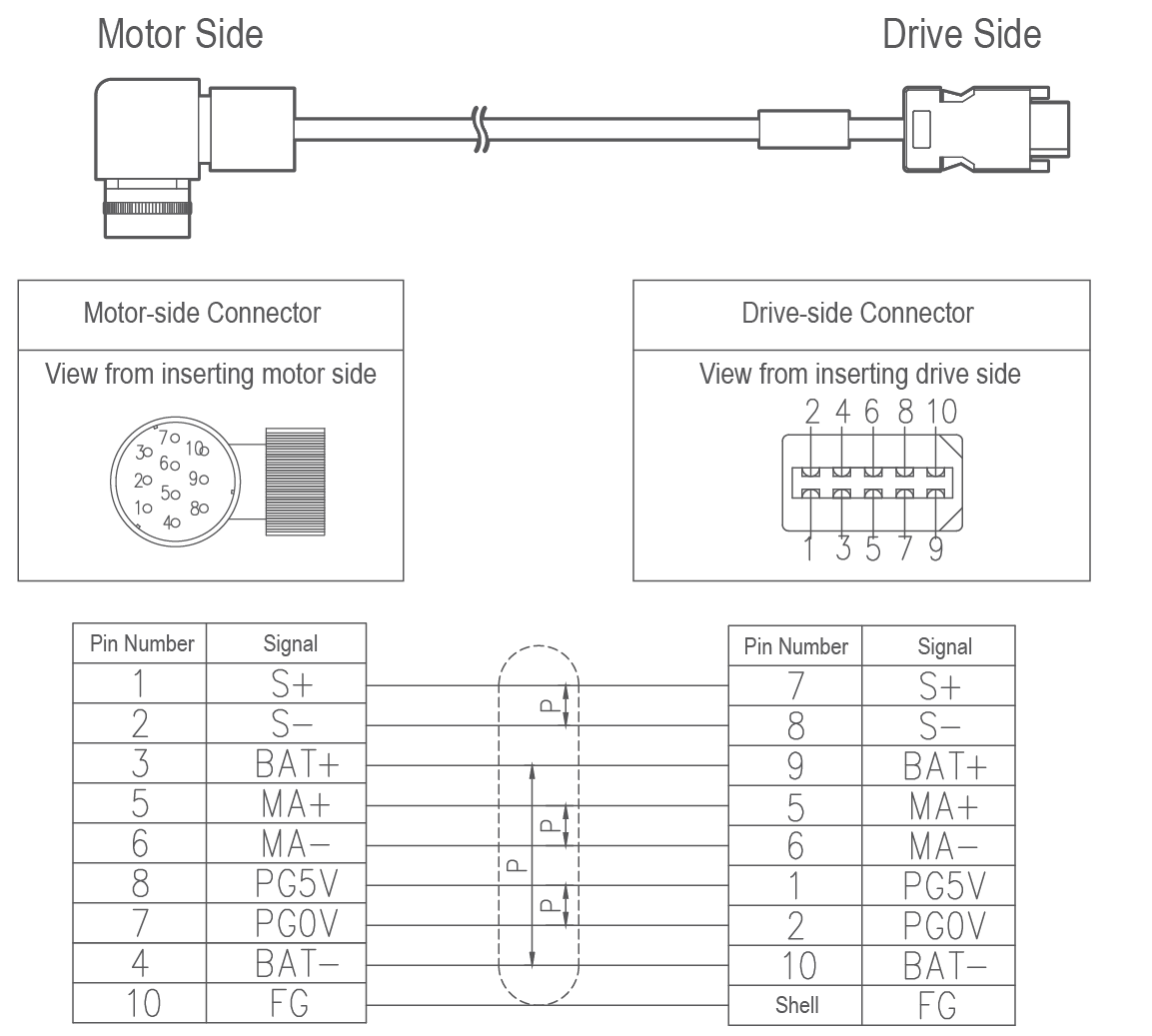

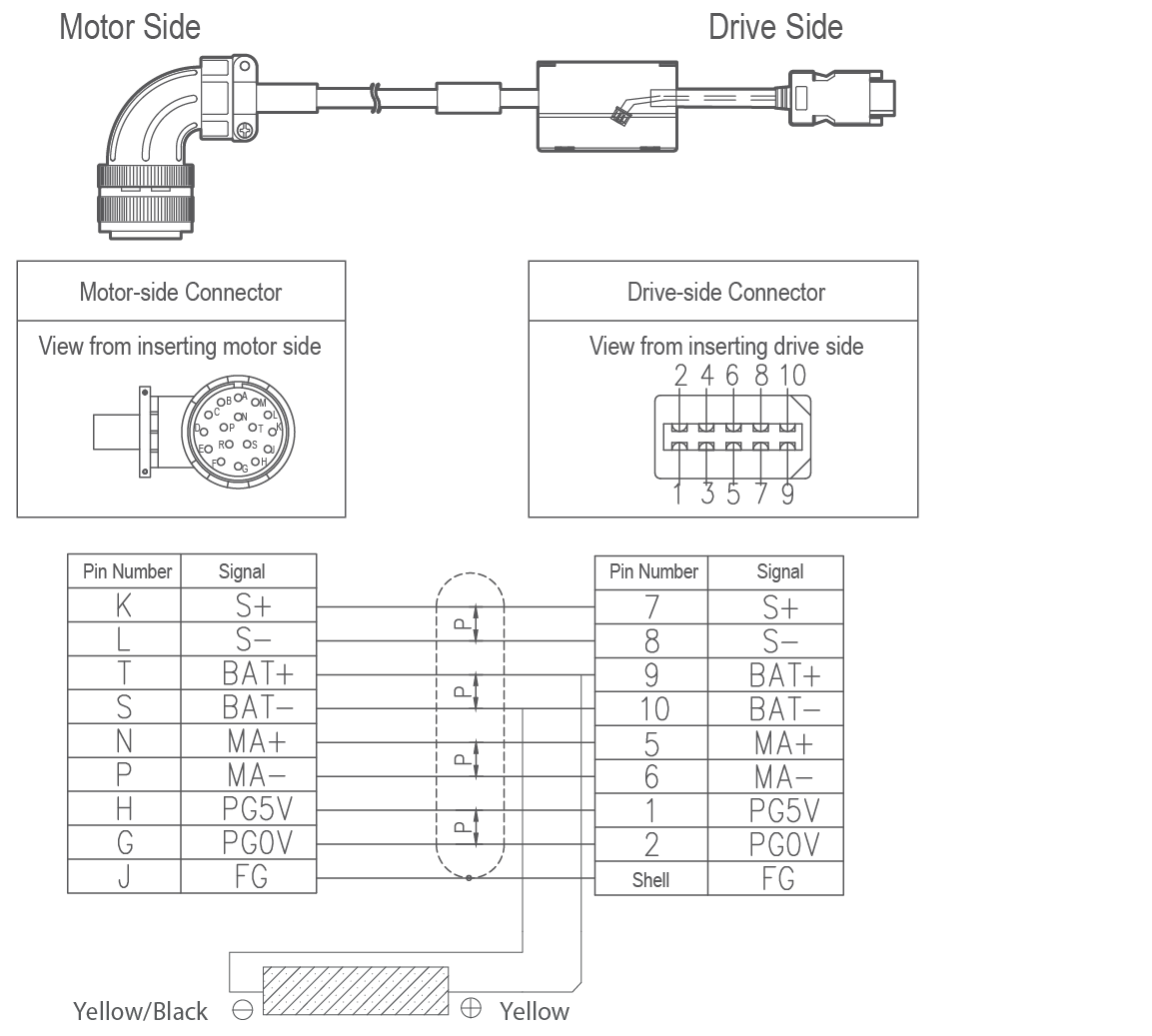

Incremental Encoder CableEC3S-I1324-XX |

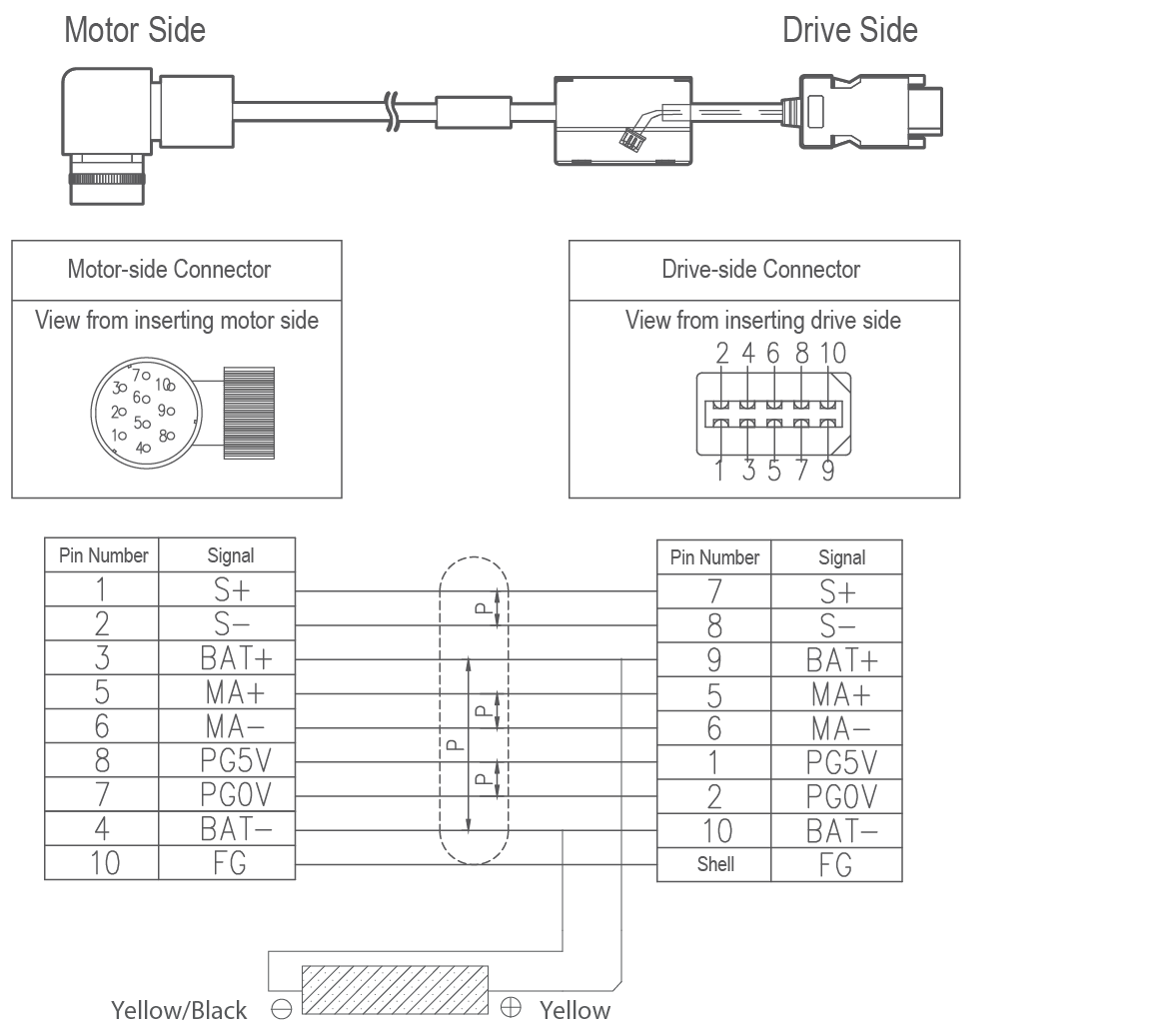

Absolute Encoder CableEC3S-A1324-XX |
Power Cable No BrakeEC3P-N9314-XX |

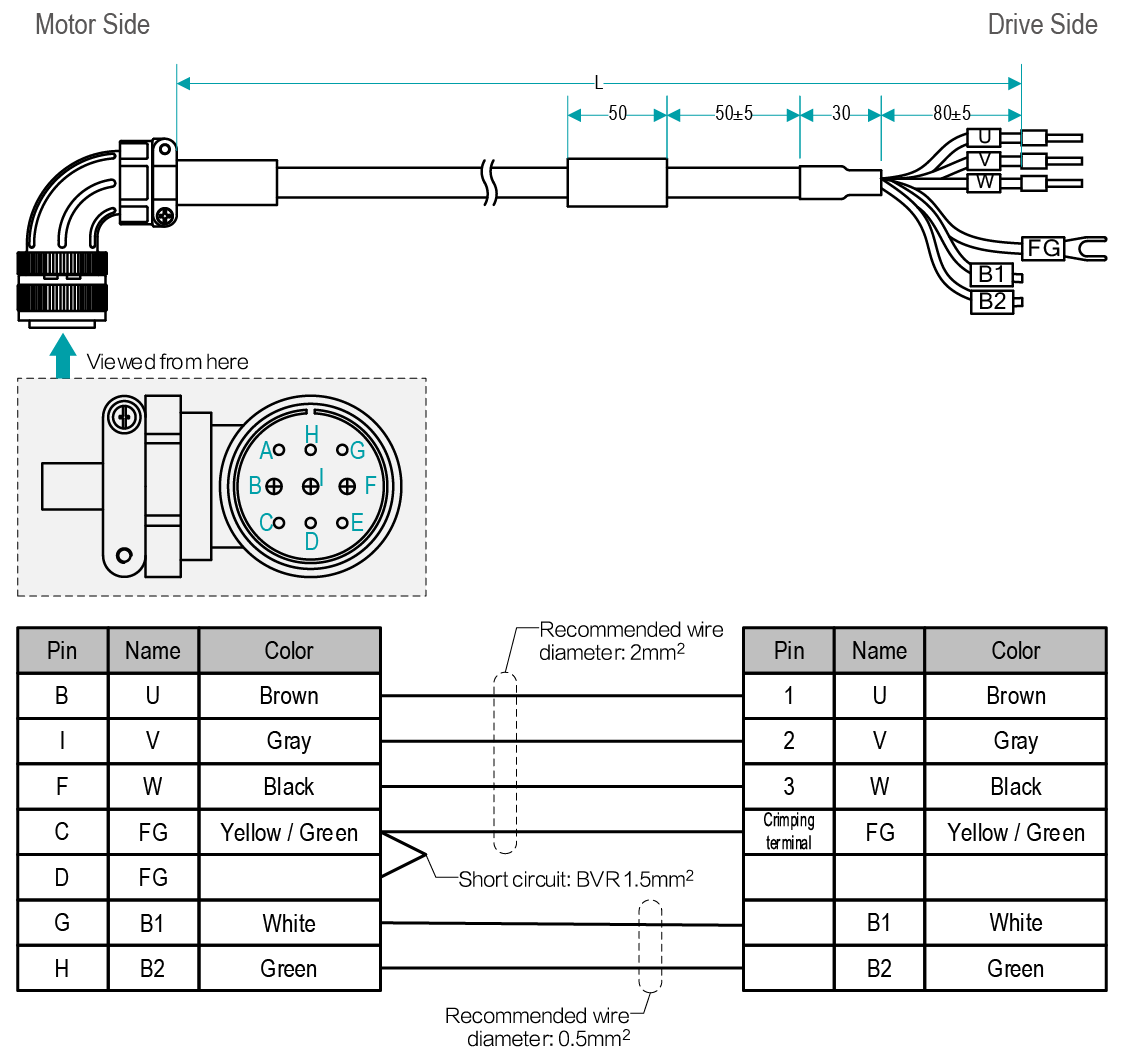

Power Cable With BrakeEC3P-B9314-XX |
| Cables for MXM Motor Range 3kW | |
|---|---|

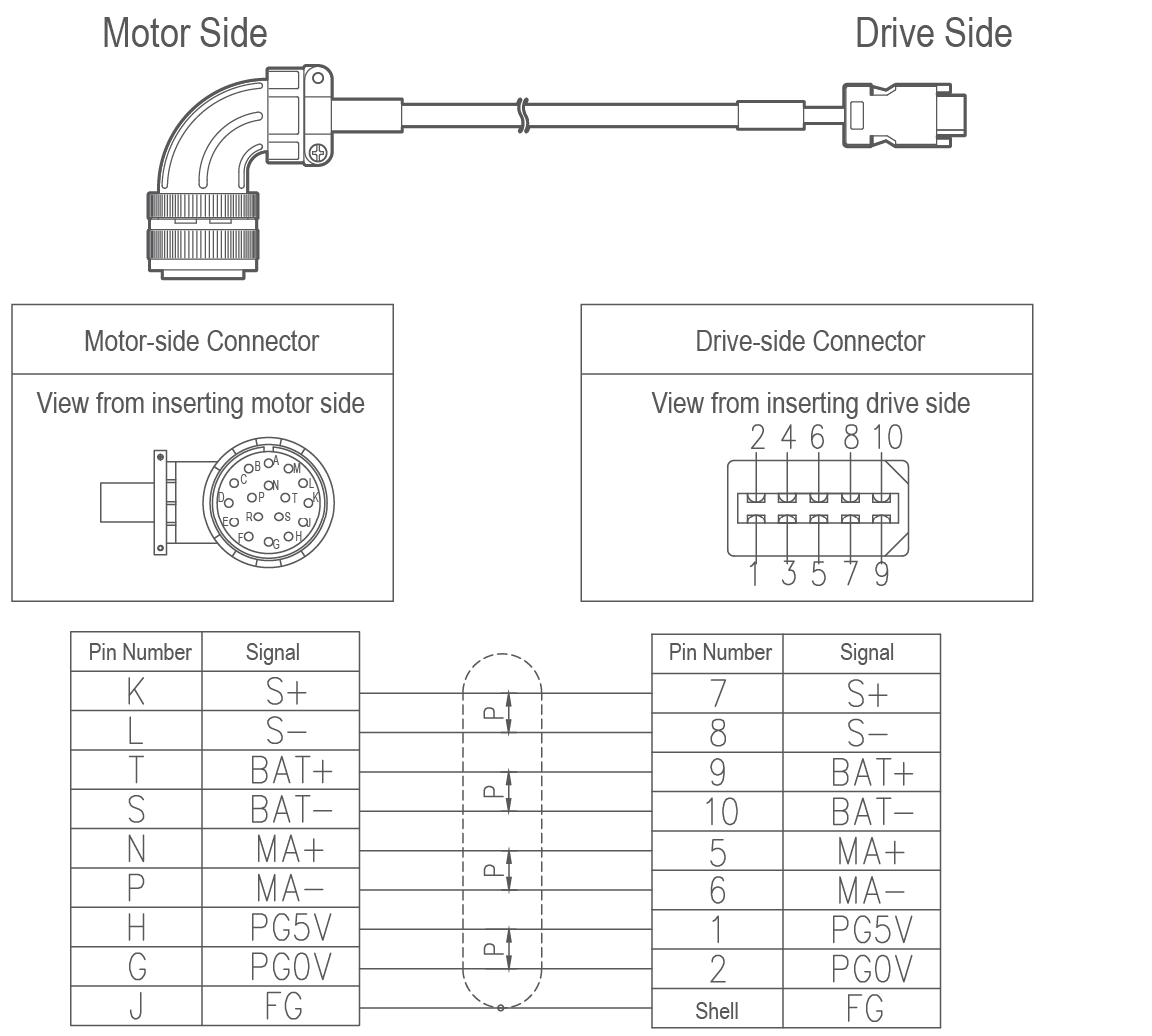

Incremental Encoder CableEC3S-I1424-XX |
Absolute Encoder CableEC3S-A1424-XX |

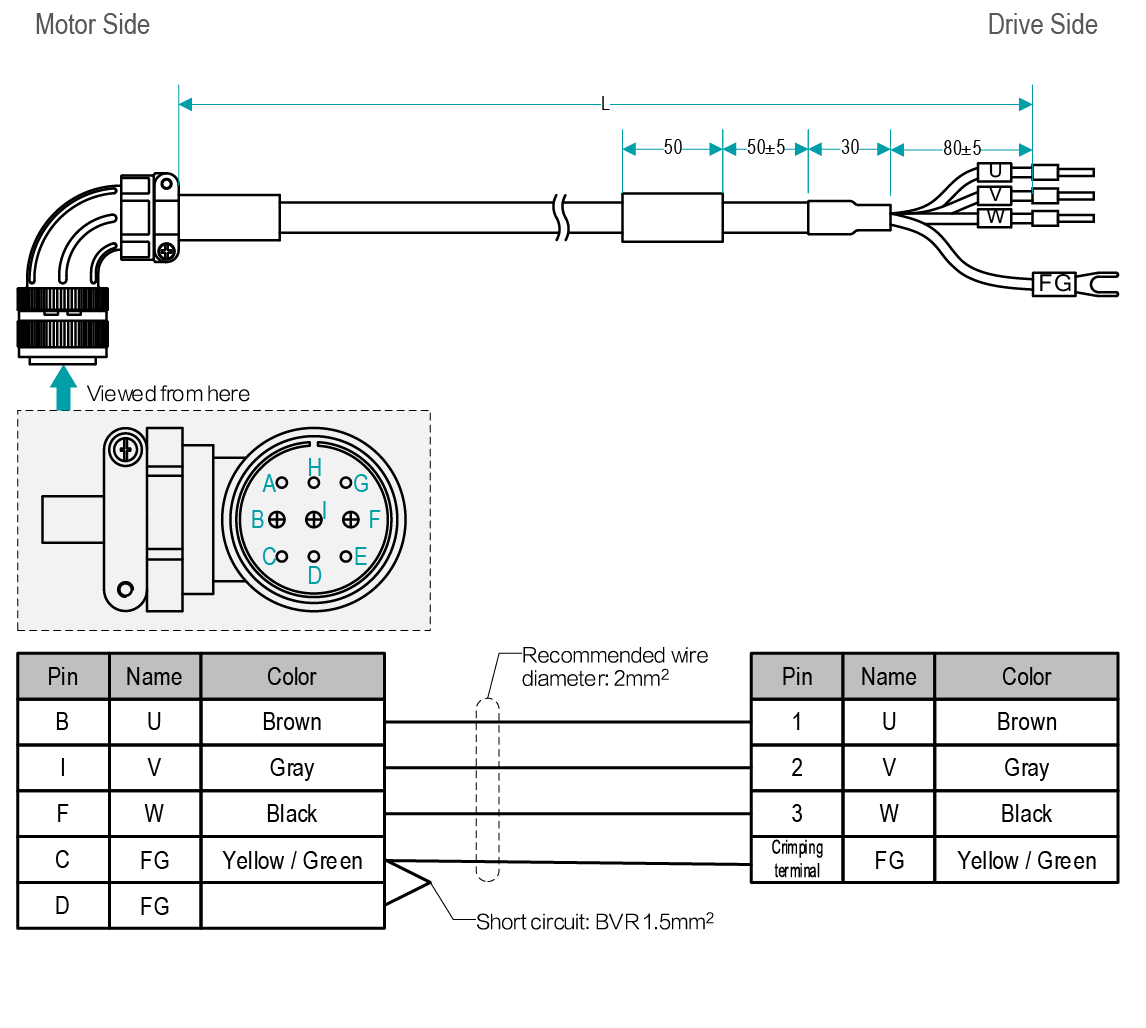

Power Cable No BrakeEC3P-N9413-XX |
Power Cable With BrakeBrake cable for the 3kW MXM motor is separate to the motor power cable, the brake cable connector is available as part number MC10-SP2S-S |
Cable Key
|
The XX at the end of the CABLE code represents the cable length: E.g.; EC3S-I1724-10 = 10 metre cable |
|
valid lengths are: 1M5, 05, 10, 15, 20 All lengths are in Metres |
| Note: |
All âRXâ cable are flexible and suitable for drag chain applications. |
| Key to Abbreviations: |
| inc: incremental |
| abs: absolute |
| std: standard |
| Guides | |
|---|---|
| Trio Support & Forum | Knowledge base and help forum |
| Videos (log in) | Videos to get you started |
| MX Motor System Brochure | Including MXM, MXL Motor and cable Range |
| Certificates | Pending |
|---|
| CAD Data | |
|---|---|
| Drawings are available in the following formats: DXF, IGES, DWG and STEP. These files are included in the Zip files for each motor. | |
| Download Zip file (log in) | CAD data for various MXM motors |
▴
