P561 (7") | P562 (10")

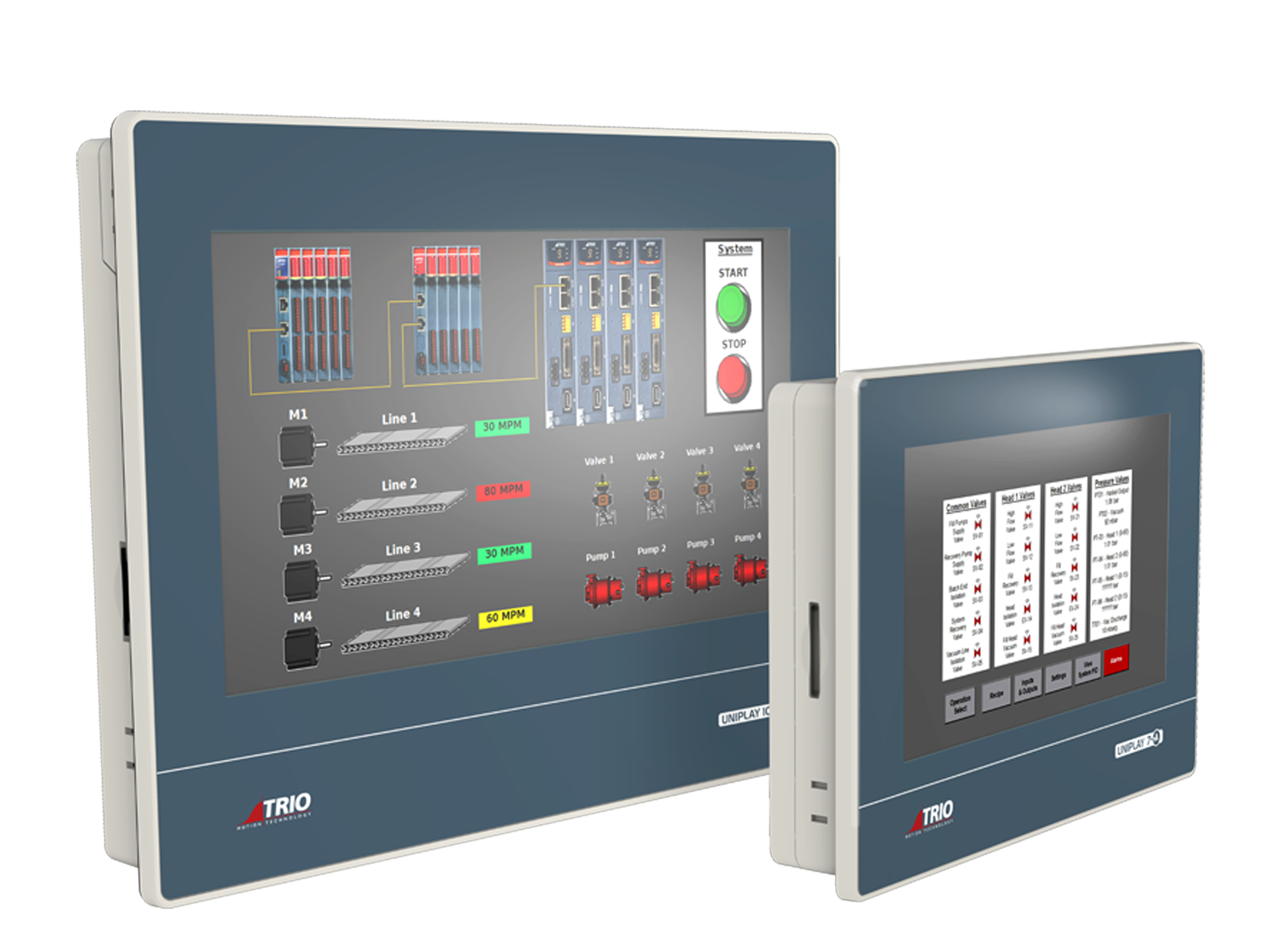

Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 7" and 10" colour display.

HMI

Highlights

  • Single point HMI programming inside Motion Perfect
  • Centralised program / HMI screen storage in Motion Perfect project
  • Easily display any controller data type + graphics
  • No need to separately program HMI panel
  • 7" and 10" UNIPLAY sealed touch panels available
  • Connect up to 2 HMI's to your Motion Coordinator
  • Ethernet connection reduces wiring

Plug and Play

The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments.

No additional software is required; UNIPLAY HMI's work with the Trio 4xx and above Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.

HMI
  UNIPLAY 7-A UNIPLAY 10-A
Part Number P561 P562
Processor 32bit RISC CPU 600MHz 32bit RISC CPU 600MHz
Display Size 7" TFT LCD 10.1" TFT LCD
Brightness 450 cd/m2 400 cd/m2
Colours 24-Bit 24-Bit
Contrast Ratio 500:1 500:1
Resolution 1024 x 600 1024 x 600
Ethernet Port 1 x 10/100 Base-T 1 x 10/100 Base-T
Memory Flash Storage: 128MByte
RAM: 128Mbyte
Flash Storage: 128MByte
RAM: 128Mbyte
Power 24Vd.c.+-20% 24Vd.c.+-20%
Max Power Consumption ~300mA@24Vd.c. ~400mA@24Vd.c.
Module Size (H x W x D) 200 x 145 x 34mm 273 x 213 x 36mm
Weight 0.56kg 0.92kg
Panel Cut-out Dimensions 192 x 138mm 260 x 202mm
CE marked for EMC Yes Yes
RoHS Compliant Compliant
HMI 7-a AND 7-a

All dimensions accurate to +/-0.3mm

HMI 7-a AND 10-a

All dimensions accurate to +/-0.3mm

Guides
Uniplay User Manual Selection, wiring and setup manual
Uniplay Upgrade guide FAQ's and upgrade path for UNIPLAY HMI
EMC Guide Electromagnetic Compatibility guide for Trio products v4
Certificates
EU Declaration P561, P562
CAD Data
Drawings are available in the following formats: DXF, IGES, DWG, STEP and OBJ. These files are included in the Zip file below.
HMI 7-A" - Download Zip file
HMI 10-A" - Download Zip file
Program Examples
Programming examples and / or videos to help with your project.

See the demo of how to create a simple screen for the UNIPLAY HMI.

Demo of how to create a simple screen for the UNIPLAY HMI.
