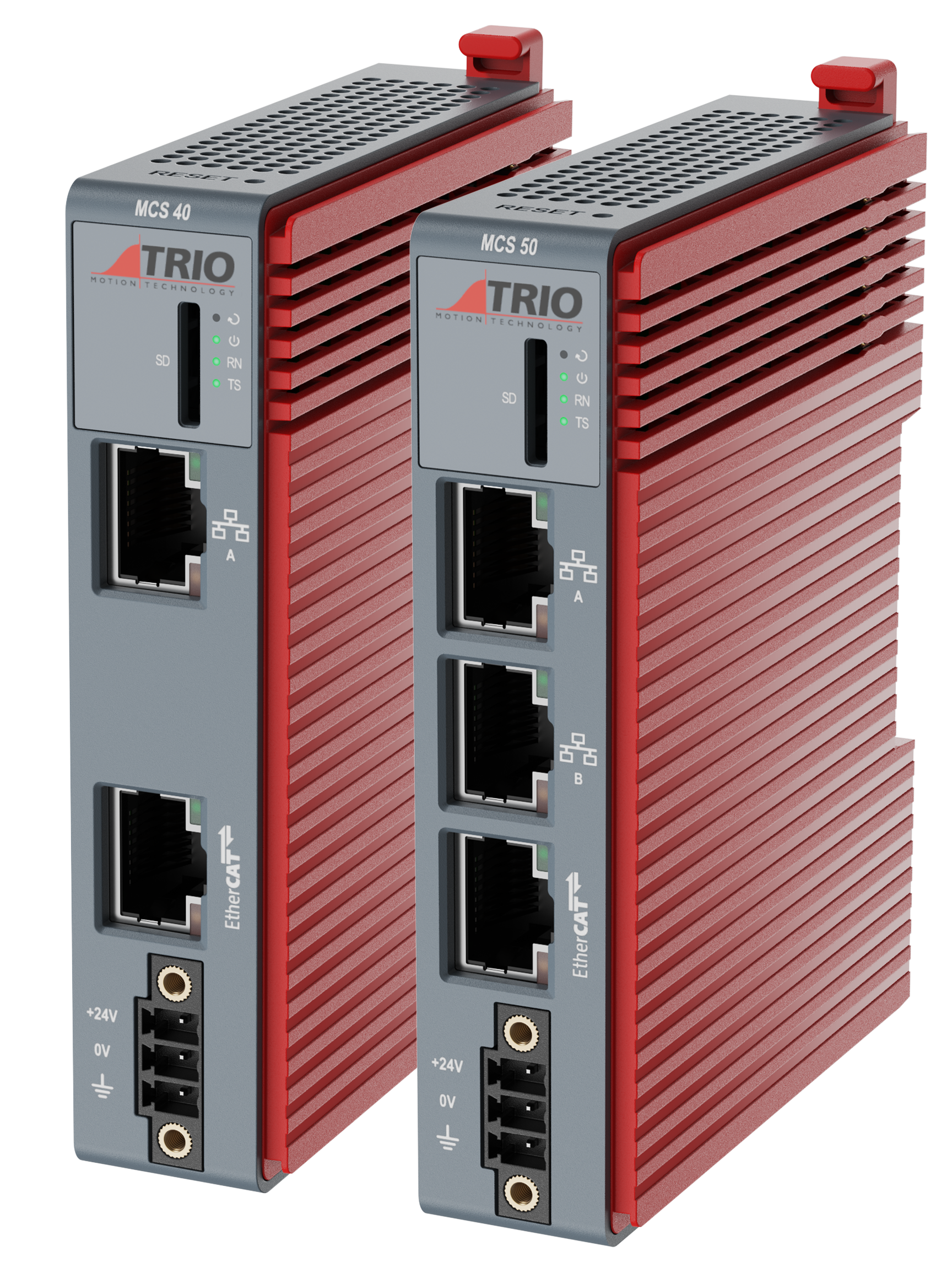

MCS 40 | MCS 50

Flexible Machine Controller

P620 | P625

The MCS 40 and the more powerful MCS 50 are 'Flexible Machine Controllers' ideal for simple stand-alone machines.

With local I/O expansion through a slice interface and Trio's MS I/O system, remote expansion through EtherCAT and Ethernet communications for both programming and factory communications it provides a flexible solution for simple machines.

The MS I/O system supports up to 16 slices. Slices can be any combination of digital inputs, digital outputs, analogue inputs or analogue outputs.

Motion PLC

Highlights

  • New class of controller for machine solutions combining mathematical processing power and logic control in a compact design
  • ‘40’ range: EtherCAT Axes (2 to 4)
  • ‘50’ range: EtherCAT Axes (2 to 8)
  • Ethernet port(s) support application programming along with HMI and PLC protocols including Modbus TCP, PROFINET IO and Ethernet/IP.
  • All controllers compatible with MS I/O Expansion
  • Controllers and MS I/O Expansion at new cost effective price points

EtherCAT logo
Motion PLC

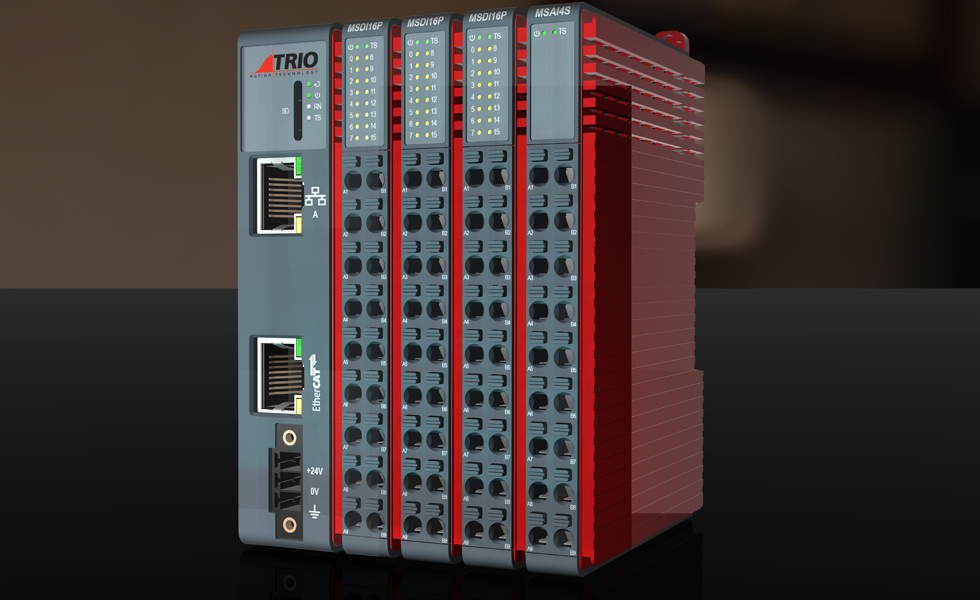

MCS 40

Ideal for Stand-Alone sub-machines...

Example: Gantry machines.

  • Low axis count.
  • EtherCAT axes.
  • Simple digital and analogue I/O

    • Motion PLC

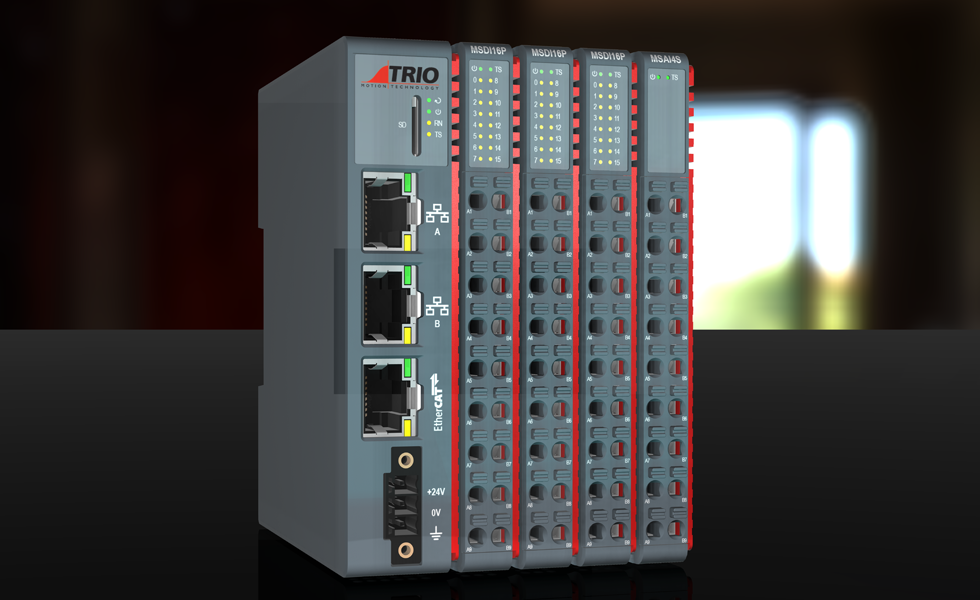

    MCS 50

    Ideal for larger stand-alone machines...

    Example: Glue laying machines.

  • Medium axis count.
  • EtherCAT axes.
  • High speed counter, registration inputs.
  • PTO, position controlled outputs.
  • Advanced motion features.
  • Auxiliary encoder input.

    • Motion-PLC Expansion

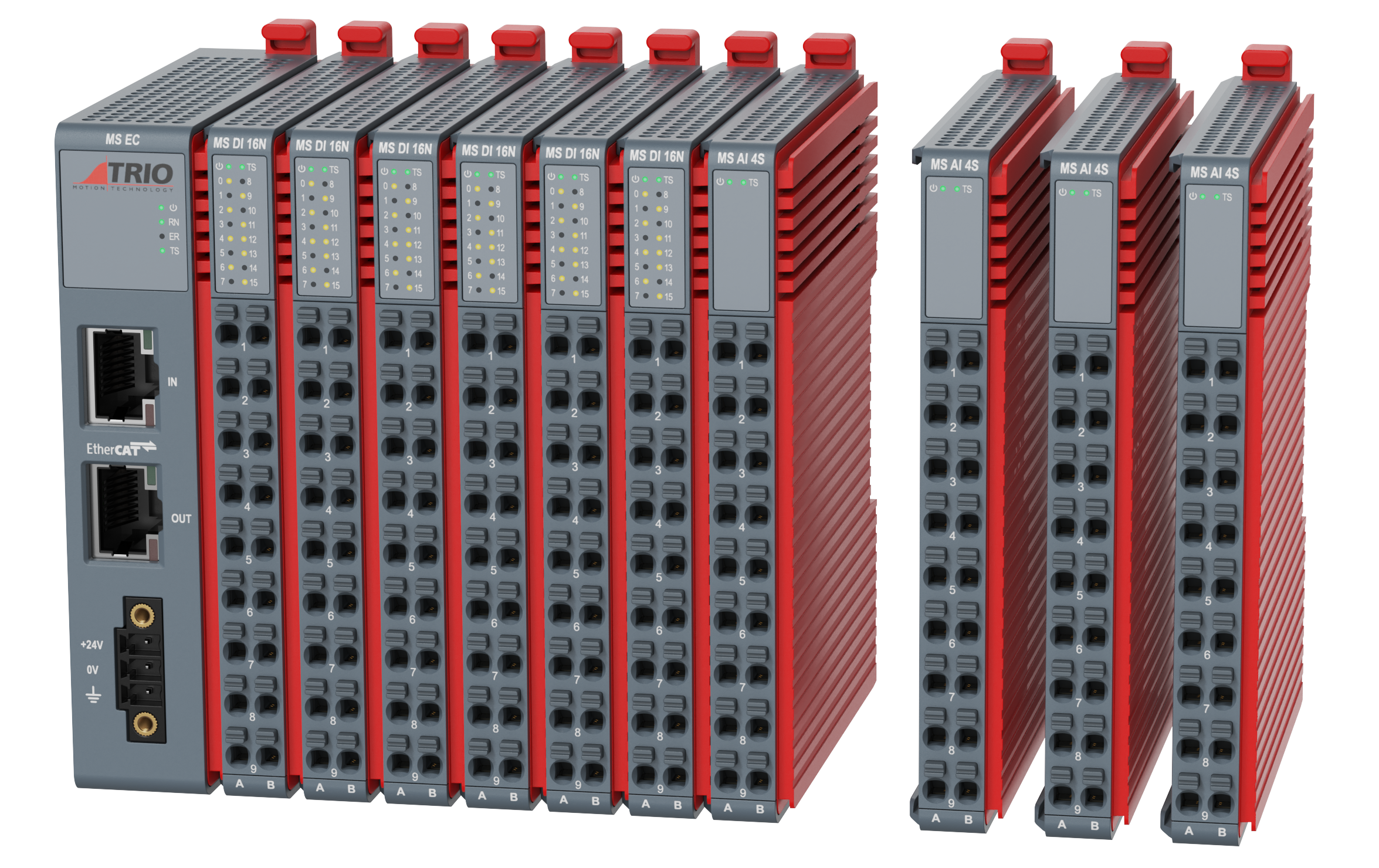

    Expansion

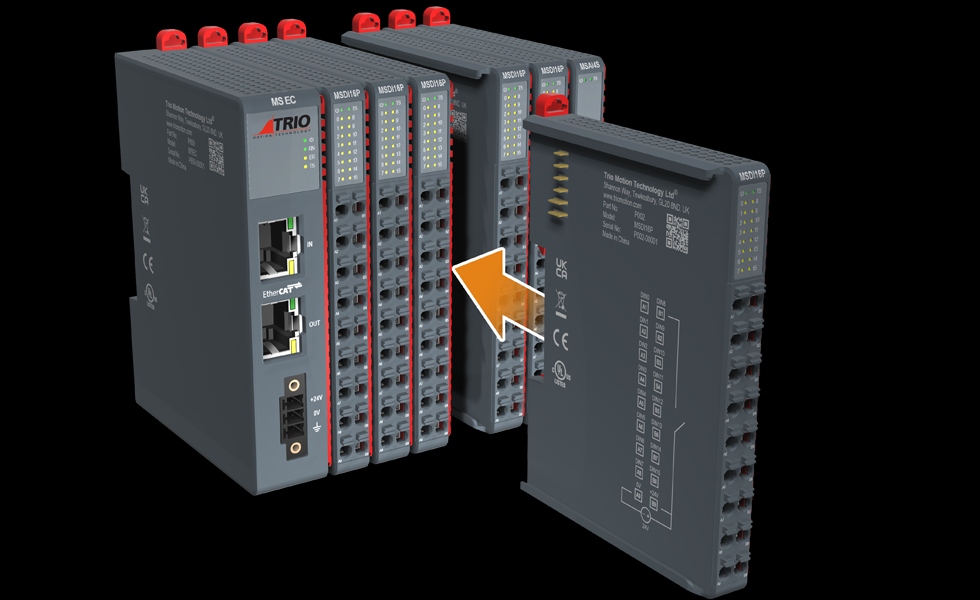

    With local I/O expansion through a slice interface and Trio's MS I/O system, remote expansion through EtherCAT and Ethernet communications for both programming and factory communications MCS controllers provide a flexible solution for simple machines.

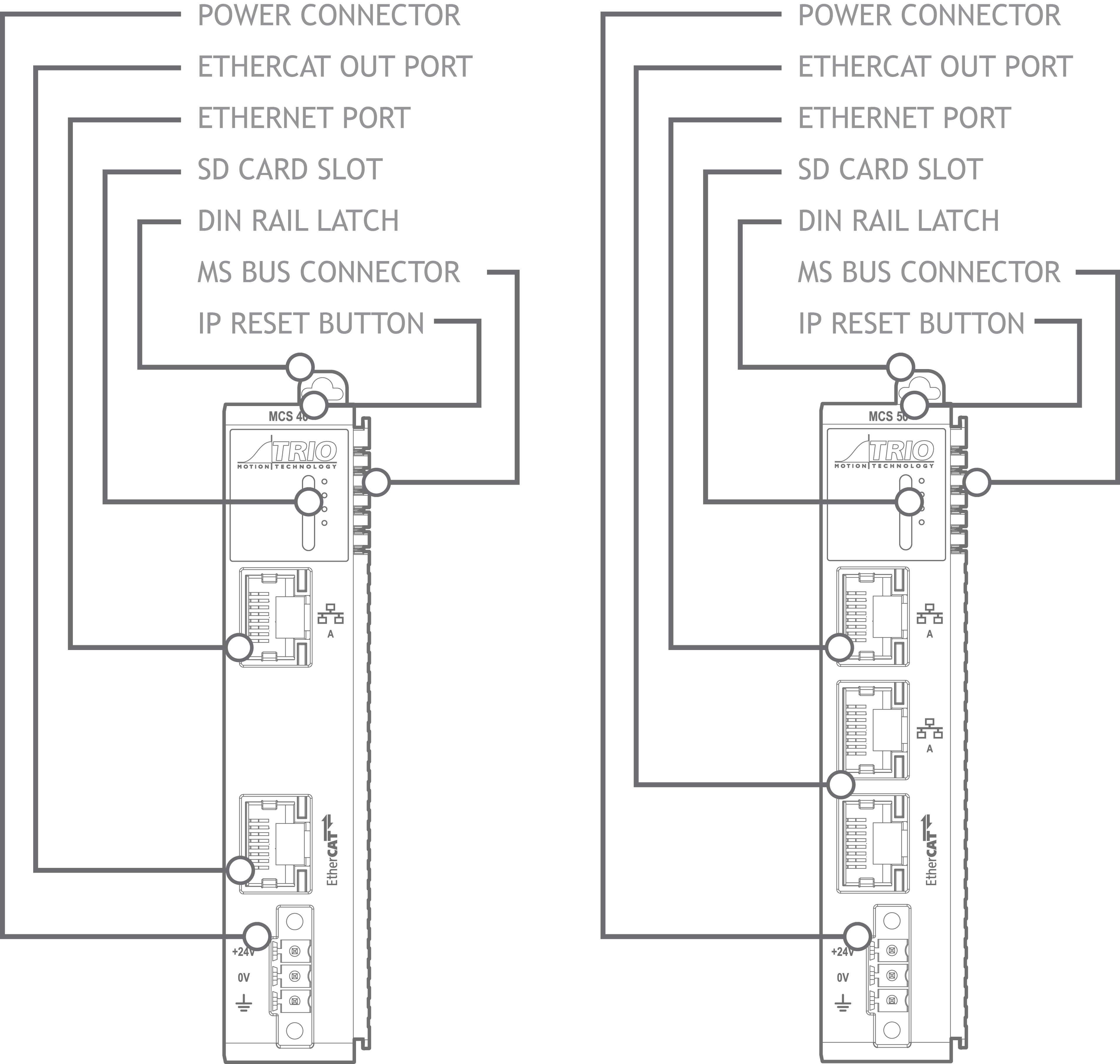

    The Range

    Simon gives a brief overview of the MCS and I/O range of Motion-PLC.

    Model Number  MCS 40 MCS 50
    Part Numbers P620 P625
    Status Current Current
    Performance Cores 1 2
    Processor ARM Cortex A55 ARM Cortex A55
    Clock Frequency 600MHz 600MHz
    Maths precision IEEE 457 Double IEEE 457 Double
    Position register precision 64-bit 64-bit
    Axes EtherCAT axes 2 (up to 4 with FEC) 2 (up to 8 with FEC)
    Virtual Axes up to 4 up to 8
    Total axes up to 8 up to 16
    Axis numbers 0 - 1023 0 - 1023
    Communications Ethernet 1 port, 100Mbit/s 2 port, 100Mbit/s
    EtherCAT 1 port, 100Mbit/s 1 port, 100Mbit/s
    Periperals Display LED Status LED Status
    Expansion Memory SD card SD card
    I/O MS I/O System MS I/O System
    Maximum number of I/O modules 16 16
    Programming Languages IEC61131-3 IEC61131-3
    Motion Features PLCopen (Advanced) PLCopen (Advanced)
    Motion Cycle Time 1ms, 2ms, 4ms 1ms, 2ms, 4ms
    Maximum Programs 48 48
    Maximum Processes 4 (12 with FEC) 4 (12 with FEC)
    Flash Memory 32 x 16000 values 32 x 16000 values
    User memory 8 MB 8 MB
    Table memory  512000 values 512000 values
    Max VR variables 4096 8192
    Move Buffer Limit 64 64
    Execution Benchmark (lines/ms) 70 (1 core) 70 (2 core)
    Protocols Ethernet Protocols Uniplay, Motion Perfect, Modbus TCP, PROFINET IO, Ethernet/IP Uniplay, Motion Perfect, Modbus TCP, PROFINET IO, Ethernet/IP
    EtherCAT EtherCAT nodes 32 48
    EtherCAT protocols CoE, FoE CoE, FoE
    CoE Features CSP, CSV, CST, TP CSP, CSV, CST, TP
    EtherCAT PDO data 1514 bytes (≥2ms)
    896 bytes (≤1ms)    		 1514 bytes (≥2ms)
    896 bytes (≤1ms)
    I/O points Max digital input points 256 (up to 1024 with FEC) 256 (up to 1024 with FEC)
    Max digital output points 256 (up to 1024 with FEC) 256 (up to 1024 with FEC)
    Max analogue inputs 32 (up to 128 with FEC) 32 (up to 128 with FEC)
    Max analogue outputs 32 (up to 128 with FEC) 32 (up to 128 with FEC)
    Upgrades FEC codes P982 (Add One Axis)
    P981 (Increase I/O)
    P984 (TrioBASIC)
    P751 (Security)    		 P982 (Add One Axis)
    P981 (Increase I/O)
    P984 (TrioBASIC)
    P751 (Security)
    Physical Main Power Supply 24V DC ± 10% 24V DC ± 10%
    H x D x W (mm)  100 x 75 x 23 100 x 75 x 23
    Weight (g) 100 100
    Mounting DIN Rail Mounting DIN Rail Mounting
    Operating temperature -20 to +55degC -20 to +55degC
    IP rating IP20 IP20
    Certifications RoHS, CE RoHS, CE
    MCS 40-MCS 50
    Software - Expansion
    P981 :
    Increase supported digital I/O points from 256 to 1024.
    Increase supported analogue I/O points from 32 to 128.
    P982 :
    Increase the supported EtherCAT axes by one axis
    P984 :
    Enable TrioBASIC programming language and all Motion-iX keywords.
    Enable Trio’s motion Function Blocks (TC_xx).
    Increase Processes count from 4 to 12.
    P751 :
    Issue fec31_password required for the user security code.
    See SET_ENCRYPTION_KEY function in TrioBASIC help file for more details.
