HMI

P844 (10")

Trio's unique UNIPLAY HMI system is a revolutionary way to make operator interfaces better, easier and more secure! The UNIPLAY series boasts a 10" colour display.

HMI

Highlights

  • Single point HMI programming inside Motion Perfect v4
  • Centralised program / HMI screen storage in Motion Perfect v4 project
  • Easily display any controller data type + graphics
  • No need to separately program HMI panel
  • 10" UNIPLAY sealed touch panel
  • Connect up to 2 HMI's to your Motion Coordinator
  • Ethernet connection reduces wiring

Plug and Play

The UNIPLAY range has built-in power isolation technology making it more reliable in noisy environments.

No additional software is required; Uniplay HMI's work with the Trio 4xx and above Motion Coordinator range. Motion Perfect is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime.

HMI
  UNIPLAY 10
Part Number P844
Processor 32bit RISC CPU 400MHz
Display Size 10" TFT LCD
Brightness 300 cd/m2
Colours 65,536
Contrast Ratio 500:1
Resolution 800 x 480
Ethernet Port 1 x 10/100 Base-T
Memory Flash Storage: 128MByte
RAM: 64Mbyte
Power 24Vd.c.+-20%
Max Power Consumption 300mA@24Vd.c.

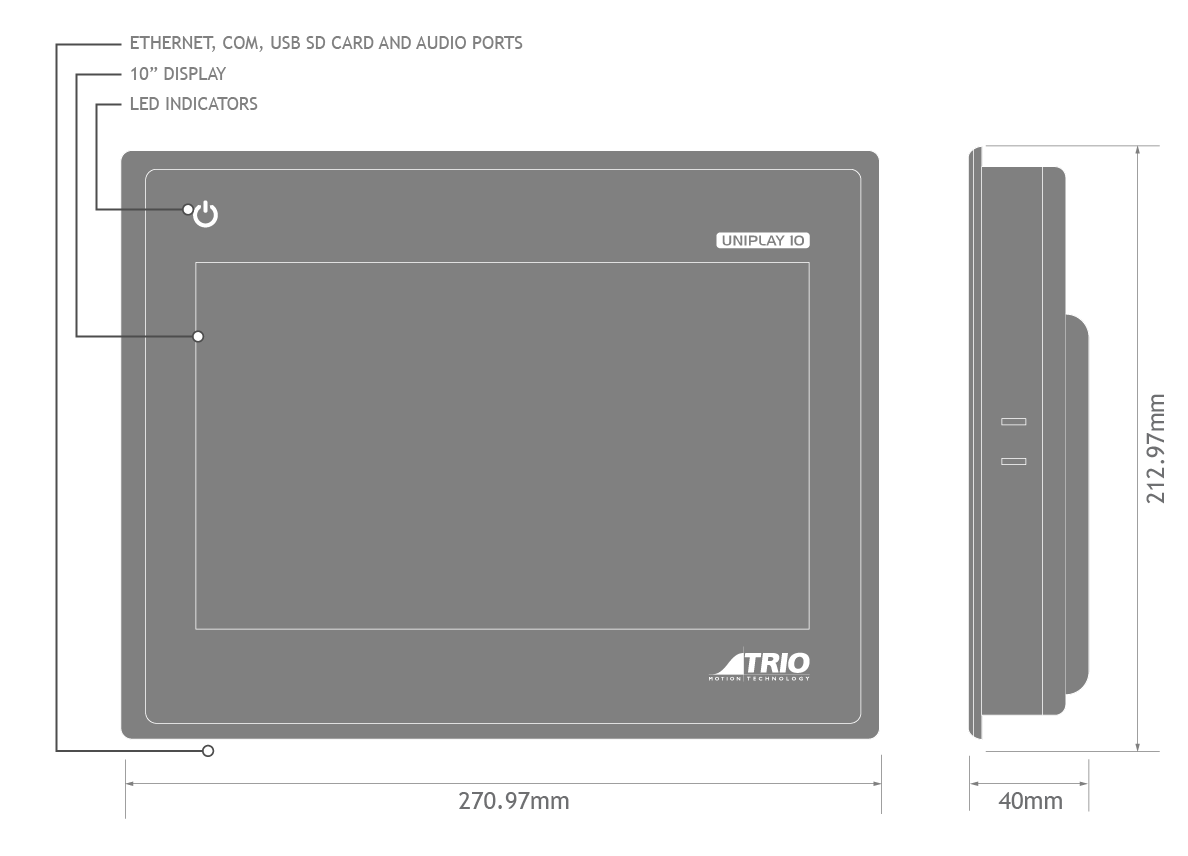

Module Size (H x W x D) 271 x 213 x 40mm
Weight 1.4kg
Panel Cut-out Dimensions 259 x 201mm
CE marked for EMC Yes
RoHS Compliant
HMI 10
Guides
Important notes for users of the 10” Uniplay with Mk1 hardware. Read this document BEFORE installing Uniplay updates.
Data Sheet
Quick Start Guide Simple set up guide
EMC Guide Electromagnetic Compatibility guide for Trio products v4
Certificates
EU Declaration P844
UL Listing Please insert E238097 UL File Number in the search box.
CAD Data
Drawings are available in the following formats: DXF, IGES, DWG, STEP and SolidWorks. These files are included in the Zip file below.
HMI 10" - Download Zip file
Program Examples
Programming examples and / or videos to help with your project.
Customer Help
Customer Support Forum Trio has a world-wide technical support network providing information to our Distributors, Solution Partners and Customers. This page includes a knowledge-base, user forum and direct online ticketing system where answers will be provided by our engineers in the UK, USA, India and China.
Training Courses Our 2-day introductory courses are designed to provide an overview of the Motion Coordinator product range and to give an introduction to programming using the Motion-iX technologies. The course is based upon practical worked examples of each topic covered to enable the attendees to gain some valuable hands-on experience of using Motion Perfect to develop applications.
Product Repair Information We offer a fixed price repair service via our distributor network. This page provides information on how to get your product repaired.

See the demo of how to create a simple screen for the UNIPLAY HMI.
